1,275 mm
Heating zone length
8.000
Parts per shift
3
Separate control zones
MEYER Maschine: RPS-E2
Special feature: SIEMENS comfort controls
The advanced SIEMENS comfort controls of the latest generation offer you user-friendly operation via a large 7-inch touchscreen. The Ethernet and Profinet interfaces ensure seamless integration into your network.
Technical data
Machine
RPS-E2
Fusing width (mm)
1.000
1.400
1.800
Dimensions L x W x H (mm)
4,105 x 1,580 x 1,250
4,105 x 1,980 x 1,250
4,105 x 2,380 x 1,250
Pressure (N/cm2)
50
35
18
Heating power (kW)
18,2
23,4
31,5
Connected load (kW)
19
24,5
32,2
Speed (m/min)
1 to 12
Control zones
3
Max. Temperature (°C)
200
Heating zone length (mm)
1.275
Features
Siemens SPS Touch
Process data logging
Program management
Quick-Change heating
Heating curve
S-Heating
Endless belts
Belt cleaning device
Spring belt tension system
Proportionally tracked belts
Optional
Endless woven belts
Zone heating
All information summarized for you
Sign up and you will receive all relevant information about our laminating machines in a brochure.
You can experience this machine live at the Test Center.
Test the RPS-E2 1000 in 1000 mm working width in our Test Center.
Individual peripheral equipment for your machines.
Configure your individual machine. We will advise you.
Fusing
Leading belts
To increase efficiency and productivity and to reduce the workload of the operating personnel, our modern laminating machines can be supplemented with leading belts. The great advantage of leading belts is that the laminated parts can be prepared on the stationary leading belt.
Fusing
Stacker for fusing machines
Stacker systems serve to relieve the strain on operating personnel. They systematically place the fusible parts in lanes and stack them fully automatically after the fusing process. Fusing parts can be up to 1,650 mm long. For very wide parts, up to five lanes can be linked.
Fusing
Return belts
Return belts are integrated into our Fusing machines to transport the fused parts back to the operator. This allows the operator to place the fusing parts and then pick up the fused parts again.
Fusing
Light table
The fusing parts can be inspected on the backlit loading table plate at the inlet of the Fusing machine before they are fused. Foreign objects such as threads and dirt can be easily detected. The light table thus serves to ensure quality assurance during fusing.
Fusing
Winder for fusing machines
Good access, easy operation: MEYER's innovative winders limit the circumferential force < 150N and comply with the latest safety standards. Positioning on rollers or rails makes rewinding even more flexible.
Fusing
Roll-off device for fusing machines
With the "roll to roll" process, the spectrum ranges from mechanically or pneumatically braked roll-off devices to winders with magnetic particle brakes and motorized roll-off devices.
Get to know the machines from MEYER.
Agree a non-binding meeting to discuss the potential of your production.
Similar machines
Take a look at other machines that could adapt to your application.
KFK-C
Ideally suited for laminating multi-layer laminated goods. Textiles, flexible materials and sheets.
Discover »
RPS-E2 Leather
Fusing machine with optimized heating system for leather lamination. Particularly gentle on the sensitive leather side.
Discover »

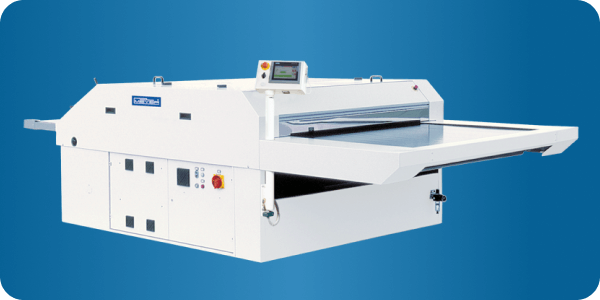

RPS-E4
